Postgres Explain Visualizer (pev) is designed to make EXPLAIN output easier to grok. It creates a graphical representation of the plan. You can read about it on my blog.

Pev is heavily influenced by the excellent explain.depesz.com.

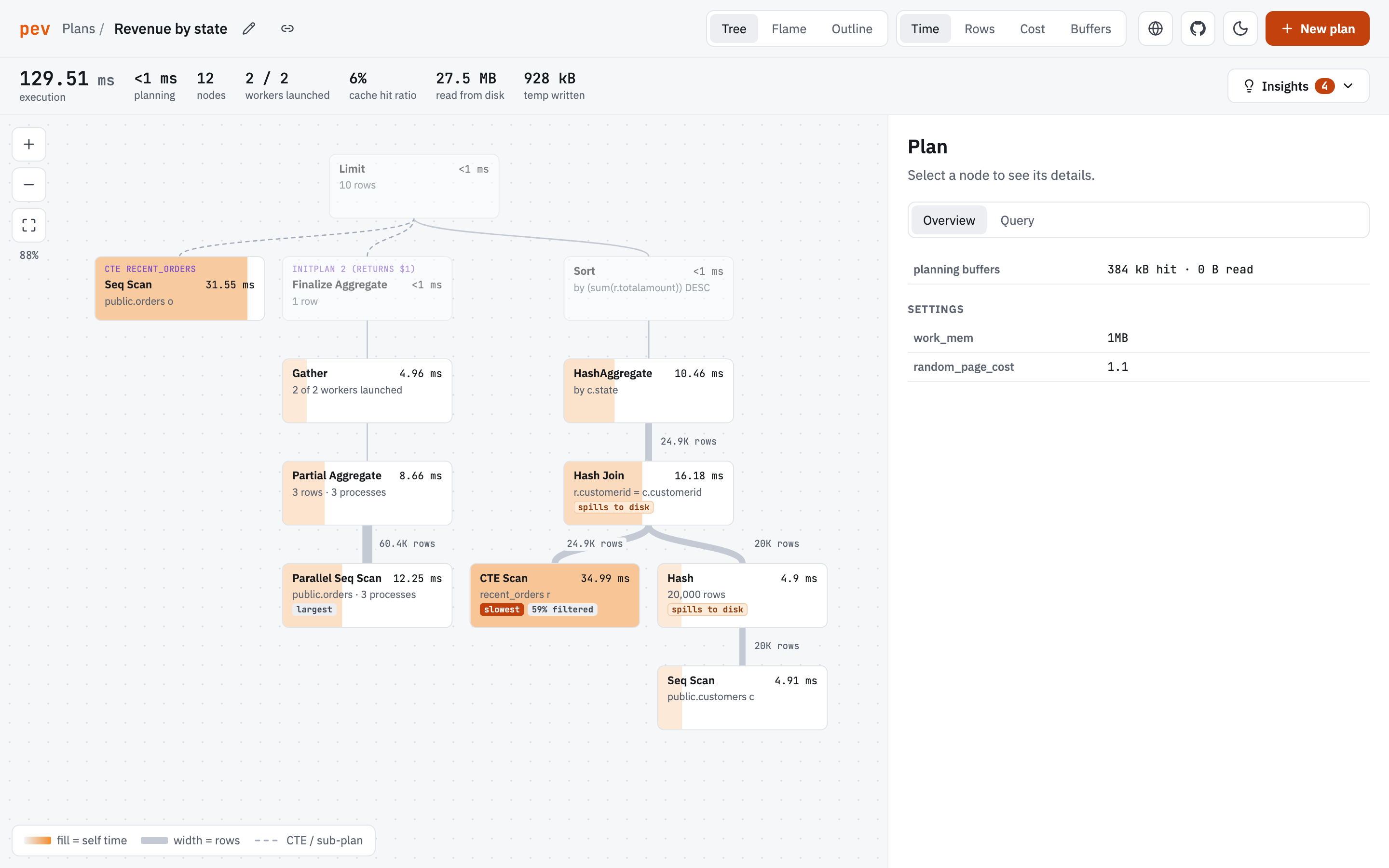

• three views of a plan: a zoomable tree (cards shaded by the chosen metric, links sized by rows), a flame chart of where the time went, and an outline that fits phone screens
• graph time, rows, cost or buffers across the whole plan
• plain-language findings, like filters that throw away most of their rows, hashes and sorts that spill to disk, bad row estimates and cold caches
• a details panel for each node: self vs. total time, estimates, filters, buffers, parallel workers, and the matching part of the SQL query
• accepts plans in JSON or text format, pasted straight from psql, pgAdmin, DBeaver and friends, or from auto_explain log entries (which bring the query along)
• opens plans from a link, so scripts can send a plan straight to pev, and any plan can be shared as a link
• understands parallel query (Gather / Gather Merge and their workers), CTEs, InitPlans and SubPlans, and attributes their time to the node that ran them
• light and dark themes, and layouts for desktop, tablet and phone

For best results, generate plans with:

EXPLAIN (ANALYZE, COSTS, VERBOSE, BUFFERS, SETTINGS, FORMAT JSON) <your query>;

Plans are stored in your browser's localStorage and never leave your machine.

https://tatiyants.com/pev/#/import?plan=...&query=...&name=... opens a plan directly. Everything after the # stays in the browser: it is never sent to the server. plan and query take plain URI-encoded text, or use plan_gz and query_gz for gzipped, base64-encoded values, which keeps links to big plans short. For example, from a shell:

psql -XqAt -c "EXPLAIN (ANALYZE, BUFFERS, VERBOSE, FORMAT JSON) SELECT ..." > plan.json
open "https://tatiyants.com/pev/#/import?plan_gz=$(gzip -c plan.json | base64 | tr -d '\n' | tr '+/' '-_' | tr -d '=')"

The link button next to a plan's name copies such a link for any plan you have open.

Pev is a React + TypeScript app built with Vite. It requires Node 20 or later.

npm install
npm run dev

Other scripts:

• npm test runs the unit tests (Vitest)
• npm run typecheck type-checks the project
• npm run build produces a static build in dist/ that can be hosted anywhere (it uses relative paths, so it works under a sub-path like /pev/)

The interesting code lives in src/lib:

• parse.ts and textParser.ts turn JSON or text EXPLAIN output into a common shape
• analyze.ts computes per-node metrics (exclusive time, buffers, estimates) and tags outliers
• insights.ts turns the analysis into plain-language findings
• layout.ts and flame.ts lay out the tree and flame views
• highlight.ts maps plan nodes back to the SQL query
• share.ts reads and builds plan links
