yurisldk/realworld-react-fsd

README

🙌 RealWorld example app 🍰 Feature-Sliced Design

A modern implementation of the RealWorld app built with React, TypeScript, React Router, React Query, and Zod.

About the Project

This project is an educational and demonstration Medium-clone built with the Feature-Sliced Design (FSD) architectural approach and modern frontend tools. It is suitable for learning, experimentation, and as a template for large-scale applications.

Tech Stack

React 19
TypeScript
React Router 7
TanStack React Query 5
Zod 4
Webpack 5
Jest
Testing Library
MSW
ESLint
Prettier
Sass
Orval

Project Structure

src/app — application shell, root router, layout, providers, root error handling
src/pages — page-scoped route modules and page UI
src/shared — reusable API layer, utilities, router helpers, and shared UI

Architecture Notes

The codebase uses a page-scoped structure rather than a full multi-layer FSD tree.

The root router is defined in src/app/browser-router.tsx.
Pages expose route objects from src/pages/*/*.route.ts.
Route modules are lazy-loaded to keep the initial bundle smaller.
Data fetching is handled in route loaders with React Query.
Mutations are handled in route actions and usually validate formData with Zod before calling the API.
Shared routing helpers, API utilities, and common UI live in src/shared.

Runtime Patterns

Lazy route modules: page components, loaders, and actions are loaded on demand.
Route loaders: async page data is prepared through React Router loaders backed by React Query.
Route actions: form submissions and mutations are handled declaratively through React Router actions.
Auth middleware: route middleware restores the current user and protects auth-only flows.
Validation before API calls: form data is validated with Zod-based helpers before mutations run.
Optimistic UI: interactive actions such as follow and favorite use fetcher-driven optimistic state.
Error boundaries: the root router renders a dedicated fallback for route and auth failures.

Development Workflow

Webpack Dev Server is used for local development.
Husky hooks are configured for pre-commit and pre-push checks.
Generated API code is produced from OpenAPI through Orval and then normalized with a local Zod conversion step.
Root Dockerfile and nginx.conf are used for the containerized frontend build.

Dependency Graph

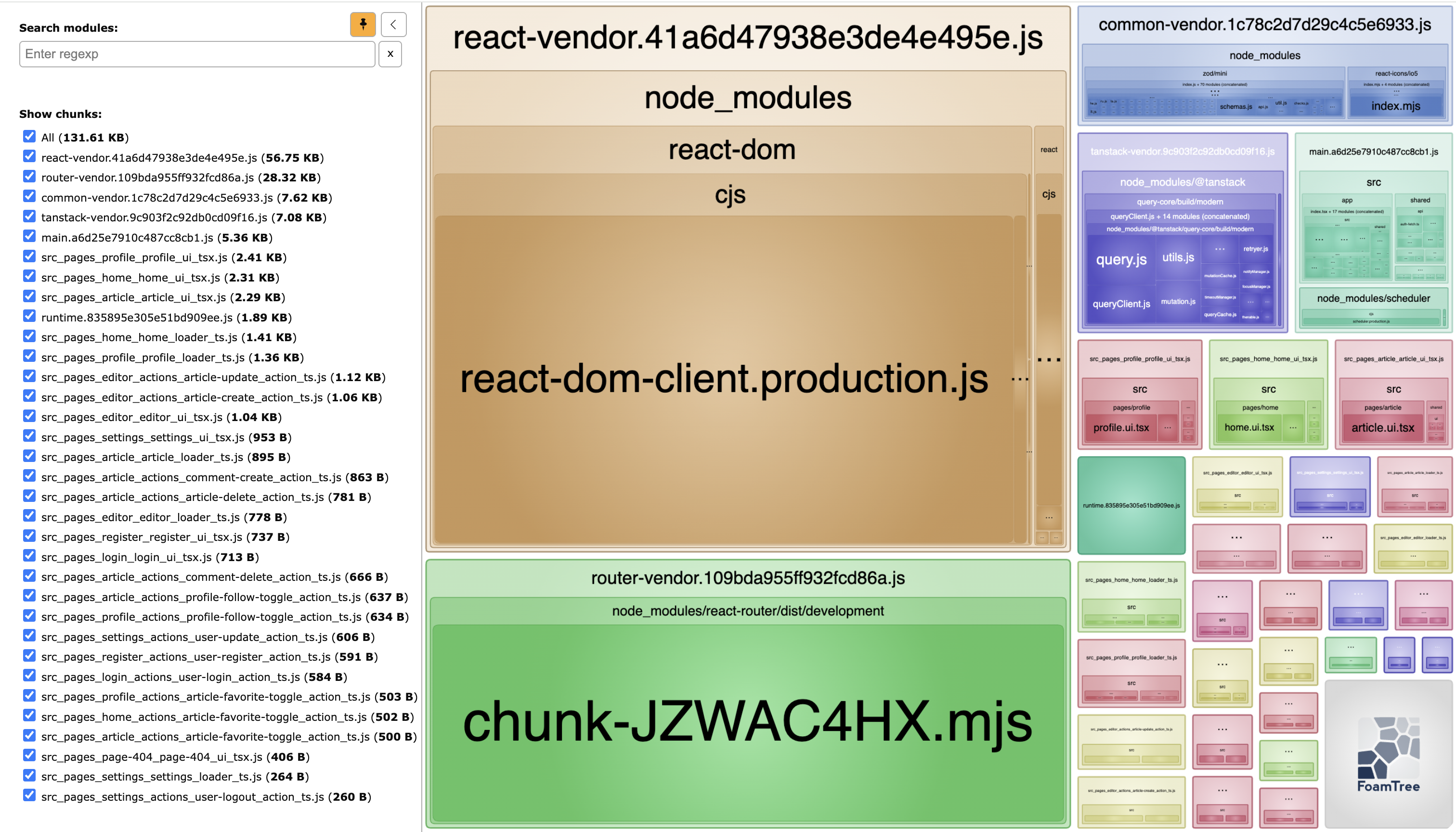

Bundle Analyze

Scripts

yarn start — starts the development server.
yarn build:dev — builds the app in development mode.
yarn build:prod — builds the production bundle.
yarn analyze:prod — builds the production bundle with bundle analyzer enabled.
yarn test — runs Jest tests.
yarn eslint — lints and auto-fixes files under src.
yarn prettier — formats the repository with Prettier.
yarn graph — generates a dependency graph preview for src.¹
yarn generate — regenerates API artifacts from the OpenAPI schema.
yarn zod:mini — post-processes generated Zod artifacts.
yarn format:generated — formats generated API files.
yarn prepare — installs Husky hooks.

Run

Install dependencies:

yarn install

Run locally:

yarn start

Frontend: http://localhost:30401
Backend API: http://localhost:30400/api

Docker Compose

Start locally with Docker:

docker compose --env-file .env.compose up -d --build

Frontend: http://localhost:30401
Backend API is expected separately at http://localhost:30400

For backend integration, see node-express-realworld-example-app.

Stop:

docker compose --env-file .env.compose down

Deployment

Build image:

docker build --build-arg API_URL=http://localhost:30400/api -t realworld-frontend .

Released images are published to GitHub Container Registry:

docker pull ghcr.io/yurisldk/realworld:2.1.0
docker pull ghcr.io/yurisldk/realworld:latest

Release images are built with API_URL=http://localhost:30400/api by default.

Footnotes

This assumes the GraphViz dot command is available - on most linux and comparable systems this will be. In case it's not, see GraphViz' download page for instructions on how to get it on your machine. ↩
