A Golang webserver to stream Postgres changes atleast-once over websockets, using Postgres' logical decoding feature.

Note: Currently, pgdeltastream is ideal as a reference boilerplate Golang server of how to connect to a Postgres logical replication slot, take a snapshot and stream changes. It should not be used to expose websockets to arbitrary clients!

PGDeltaStream uses Postgres's logical decoding feature to stream table changes over a websocket connection. It is a stateless service and can be connected directly to a Postgres instance.

PGDeltaStream gives you endpoints to snapshot your current data and then start streaming after the snapshot guaranteeing that you don’t lose any event data. Clients can also ACK an offset value as frequently as they desire over the websocket connection. If a client reconnects, then the stream continues from the last ACKed offset.

This process guarantees atleast-once delivery of changes in Postgres.

When a logical replication slot is created, Postgres creates a snapshot of the current state of the database and records the consistent point from where streaming is supposed to begin. The snapshot helps build an initial state of the database over which streaming changes can be applied.

To facilitate retrieving data from the snapshot and to stream changes from then onwards, the workflow is split into 3 phases:

1. Init: Create a replication slot
2. Snapshot: Get data from the snapshot over HTTP
3. Stream: Stream WAL changes from the snapshot point over a websocket connection

Run Postgres configured for logical replication and wal2json installed:

# Run postgres
$ docker run -it -p 5432:5432 debezium/postgres:10.0

Launch PGDeltaStream:

$ docker run \
    -e DBNAME="postgres" \
    -e PGUSER="postgres" \
    -e PGPASS="''" \
    -e PGHOST="localhost" \
    -e PGPORT=5432 \
    -e SERVERHOST="localhost" \
    -e SERVERPORT=12312 \
    --net host \
    -it hasura/pgdeltastream:v0.1.7

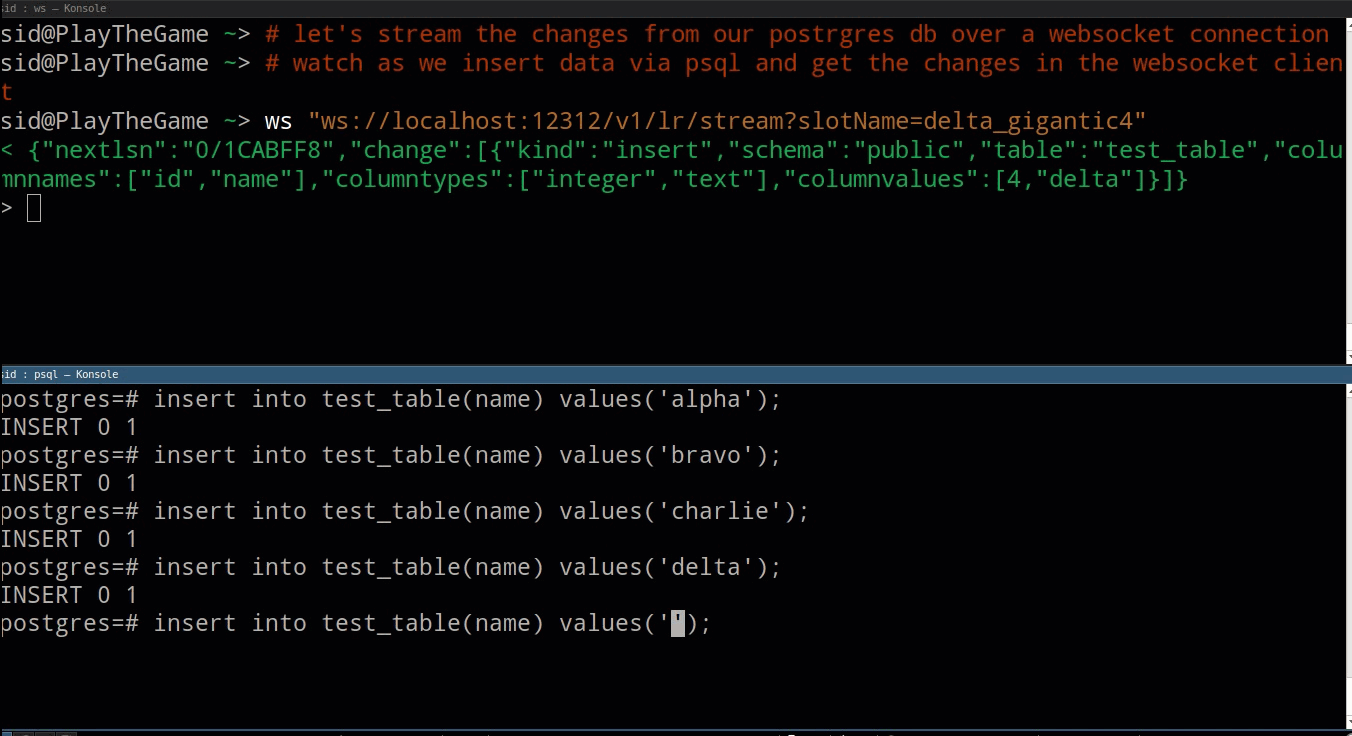

Watch the video guide to get a super fast introduction of how to use PGDeltaStream.

Call the /v1/init endpoint to create a replication slot and get the slot name.

$ curl localhost:12312/v1/init
{"slotName": "delta_face56"}

Keep note of this slot name to use in the next phases.

To get data from the snapshot, make a POST request to the /v1/snapshot/data endpoint with the slot name, table name, offset and limit. You can also specify the column and order you want the results to be sorted in:

curl -X POST \
  http://localhost:12312/v1/snapshot/data \
  -H 'content-type: application/json' \
  -d '{"slotName": "delta_face56", "table": "test_table", "offset": 0, "limit": 5, "order_by": {"column": "id", "order": "ASC"}}'

The returned data will be a JSON formatted list of rows:

[
  {
    "id": 1,
    "name": "abc"
  },
  {
    "id": 2,
    "name": "abc1"
  },
  {
    "id": 3,
    "name": "abc2"
  },
  {
    "id": 4,
    "name": "val1"
  },
  {
    "id": 5,
    "name": "val2"
  }
]

Note that only the data upto the time the replication slot was created will be available in the snapshot.

Connect to the websocket endpoint /v1/lr/stream along with the slot name to start streaming the changes:

ws://localhost:12312/v1/lr/stream?slotName=delta_face56

The streaming data will contain the operation type (create, update, delete), table details, old values (in case of an update or delete), new values and the nextlsn value.

The query:

INSERT INTO test_table (name) VALUES ('newval1');

will produce the following change record over the websocket connection:

// Received over ws
{
  "nextlsn": "0/170FCB0",
  "change": [
    {
      "kind": "insert",
      "schema": "public",
      "table": "test_table",
      "columnnames": [
        "id",
        "name"
      ],
      "columntypes": [
        "integer",
        "text"
      ],
      "columnvalues": [
        3,
        "newval1"
      ]
    }
  ]
}

The nextlsn is the Log Sequence Number (LSN) that points to the next record in the WAL.

To update postgres of the consumed position simply send this value over the websocket connection:

// Send over ws
{"lsn":"0/170FCB0"}

This will commit to Postgres that you've consumed upto the WAL position 0/170FCB0 so that in case of a failure of the websocket connection, the streaming resumes from this record.

The application has been designed as a single session use case; i.e. as of now there can be only one replication slot and corresponding stream that can be managed. Any calls to /v1/init will delete the existing replication slot, and create a new replication slot (along with the snapshot).

At any point if you wish to start over with a new replication slot, call /v1/init again to reset the "stream".

To use the logical replication feature, set the following parameters in postgresql.conf:

wal_level = logical
max_replication_slots = 4

Further, add this to pg_hba.conf:

host    replication     all             127.0.0.1/32            trust

Restart the postgresql service.

The slots names are autogenerated following the format delta_<word><number>.

This is so that it is easy to remember the slot name instead of a string of random characters and the delta_ prefix identifies it as a slot created by this application.

Contributions are welcome!

Read the contributing guide to learn about setting up the development environment, building the project and running tests.

Do check the issues page to see the backlog and help us in improving PGDeltaStream!
